Electric Aerial Working Scissor Lift

1. The surface of our scissor carry is shot blasting. it is very easy and delightful. the painting can be very anti corrosion.

2. Scissor elevate structure is very compact with a view to assure the structure is powerful enough.

3. We adopts automated manufacturing line in order that the best is exceedingly guaranteed.

4. High strength steel systems, easily carry up and drop down, without difficulty operated, very few faults.

5. Strength assets: neighborhood energy available on the running web sites.

Contact Now

Product Details

Hydraulic scissor carry moved and lifts by battery electricity. driving manage panel and lifting manipulate panel are all at the platform.

Operator can control moving, turning, lifting, reducing and all different motion at the platform. of path, lifting manage panel is also to be had one side of the frame. scissor lift shape is very compact with the intention to guarantee the shape is strong sufficient.

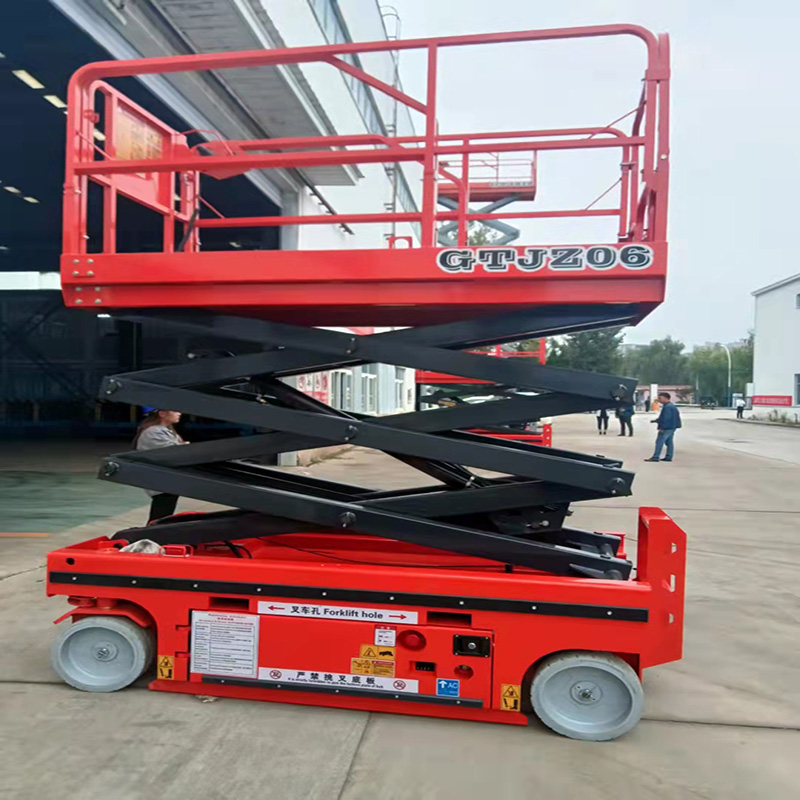

Electric Aerial Working Scissor Lift .jpg

Model No.	CWGJJZ06	CWGJJZ08	CWGJJZ10	CWGJJZ12
Lifting Height (mm)	6000	8000	10000	12000
Lifting capacity	300	300	300	300
max. height-guardrail unfolding (mm)	2150	2275	2400	2525
max. height-guardrail removed (mm)	1190	1315	1440	1565
Overall Length (mm)	2400
Overall Width (mm)	1150
Platform Size (mm)	2270×1150
Platform extend size (mm)	900
Min. ground clearance-folding (mm)	110
Min. ground clearance-rising (mm)	20
Wheelbase (mm)	1850
Min. turn radius-inner wheel (mm)	0
Min. turn radius-outer wheel (mm)	2100
Power source (v/km)	24/3.0
Running speed-folding (km/h)	4
Running speed-rising (km/h)	0.8
Rising/falling speed (sec)	40/50		70/80
Battery (V/AH)	4×6/210
Charger (V/A)	24/25
Max. climbing ability (%)	20
Max. working allowable angle	2-3°
Way of control	Electro-hydraulic proportion control
Driver	Double front-wheel
Hydraulic drive	Double rear-wheel
Wheel size-stuffed&no mark	Φ381×127	Φ381×127	Φ381×127	Φ381×127
Whole weight (kg)	1900	2080	2490	2760

Configurations:
Integrated control handle on the platform
Up-down control panel on the body
High capacity battery
Intelligent battery charger
Emergency release brake
Emergency decline button

Automatic pothole protection

High/low travel speed

Safety overhaul support
Electric motor
Electric Driving motor
Electric control system
Non-marking driving PU wheels
Non-marking steering PU wheels
Self-lock door on platform
Foldable Guardrails
Extendable platform

Anti-collision protection of platform
Forklift hole
