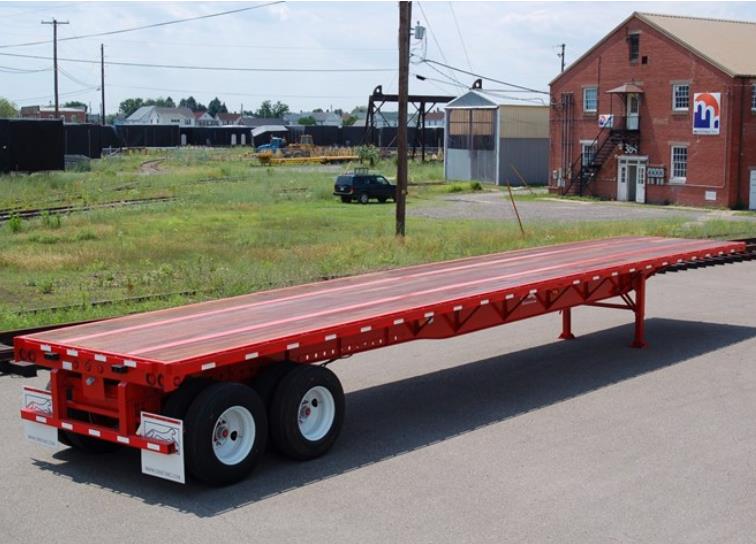

40FT Flatbed Trailer

Flatbed trailers are widely used and highly versatile, making them one of the most popular trailers seen on the roads today. Typically, freight is loaded onto the tip, sides, and rear of the flatbed. With this easy loading capability, flatbeds have become one of the cornerstones of today’s trucking industry.

A flatbed trailer can carry a maximum legal freight weight of 48,000 pounds.

Contact Now

Product Details

A flatbed trailer is a standard open deck equipment that has no roof nor facets. it's miles mainly used for transporting heavy, oversized, wide and indelicate items along with machinery, building components or equipment. the flatly shaped body makes it a great deal simpler to load and dump goods.

Total Weight	30, 35 T/tons
Rated Load	30 T/tons
Tare Weight	4000 kg
Tire Specifications	825R22.5, 11R20, 12R22.5
No. Of the Tires	8
Axle Brand	BPW
No. Of the Axles	2
Per load	13000 kg
Pieces of leaf-spring	10
Suspension	independent stamping steel rigid suspension (or air suspension)
Main Beam	Height:450mm-580mm
Outside Dimensions (LxWxH)	20 ft
Material of the Main Beam	Q345B manganese plates, automatic submerged arc welded
Brake Air Chamber	Four double and two single chambers
Floor	Steel Sheet 3mm thickness or diamond plate
