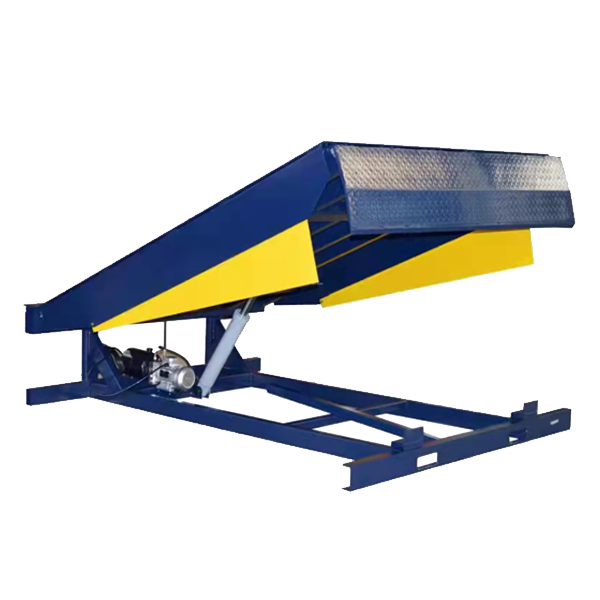

12 ton Stationary Dock Leveler

It is designed 6000-12000kg load capacity. All its carrying construction is designed maximum effectiveness and long-term using. Special designed lip and hydraulic system block any crash and supply safety loading.



Our dock leveler is hydraulically operated; by installing in a pit, it can be leveled with the ground or any floor when not in use, eliminating the possibility of covering more space for it.


  Contact Now
Product Details

Applications:

Big company, warehouse, station, dock, logistics base, and other places where goods are handled frequently to or from vehicles.


Specification of CE certified 12 ton horse trailer ramp heavy loading ramp dock leveler

Model

Load

capacity

 Platform size (m)

 Adjusting range

 Overall dimension

(m)

 Net weight

 Operation method

 Motor power

CWGJ6-0.7

6 ton

2000*2500

+400-300mm

2500*2000*600

1300kg

electric motor driven

0.75kw

CWGJ8-0.7

8 ton

2000*2500

+400-300mm

2500*2000*600

1360kg

electric motor driven

0.75kw

CWGJ10-0.7

10 ton

2000*2500

+400-300mm

2500*2000*600

1400kg

electric motor driven

0.75kw

CWGJ12-0.7

12 ton

2000*2500

+400-300mm

2500*2000*600

1460kg

electric motor driven

0.75kw


Key Features:

1.All-hydraulic drive, easy operation

2.Lip plate is connected to the leveler with long axis, high-strength and reliable

3.Imported sealing part to guarantee good sealing performance of hydraulic system

4.Modular hydraulic station with good sealing quality

5.High strength U-shape design to ensure big load capacity without deformation

6.Skirt board is designed to prevent damage of toes

7.Supporting bar is arranged for internal maintenance
