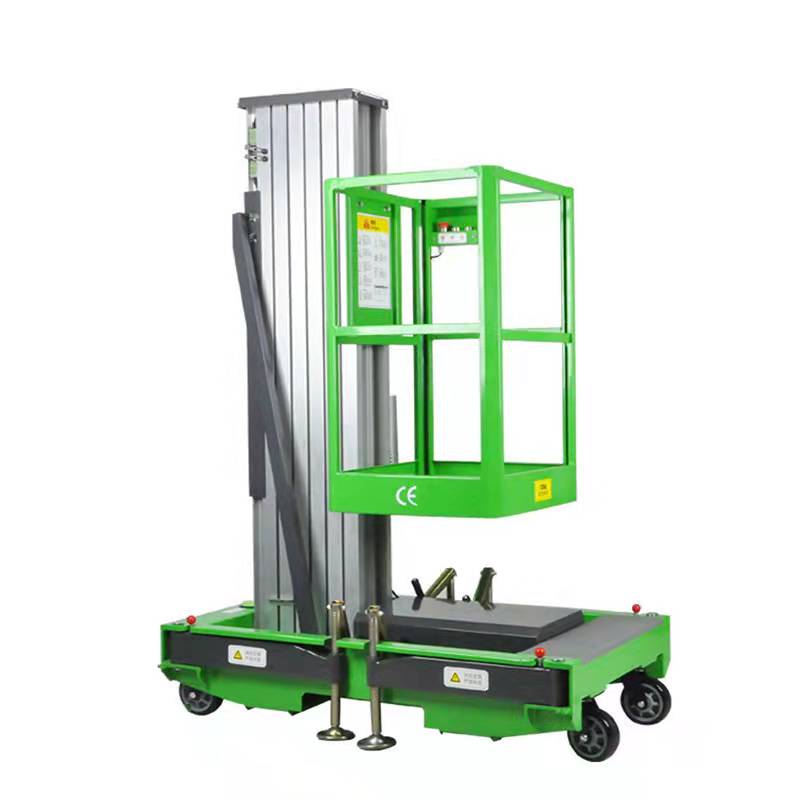

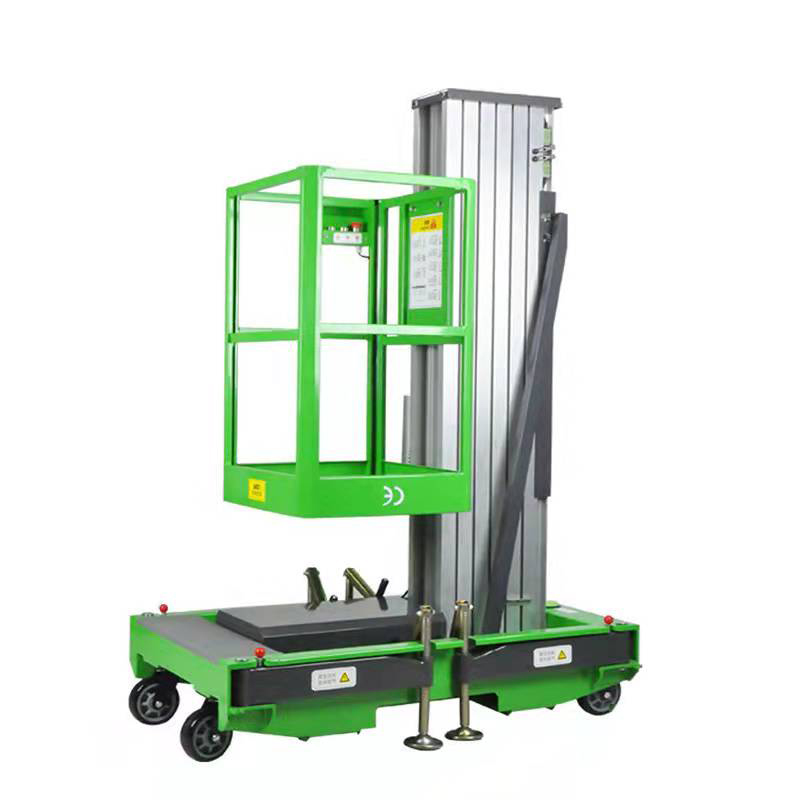

Single Mast Aluminum Alloy Lift Vertical

1. Aluminum mast structure, lifting smooth, moving light.

2. Up and down the platform can control the lift, with emergency stop button.

3. Leakage protection, thermal protection, emergency travel protection.

4. Power failure self-locking, emergency drop, cylinder crack prevention device.


  Contact Now
Product Details

Single mast elevate features:

1. Compact shape for get entry to to narrower passageways and elevators.

2.The primary lifting mast is product of excessive energy aluminum alloy extruded profiles with high safety and mild weight.

3.Self-advanced vital built-in sliders are used between masts to reduce dynamic clearance among masts.

4.Going for walks more stable, dependable, a long way advanced to the everyday independent guide wheel assist structure.

Single Mast Aluminum Alloy Lift Vertical.jpg

Collection type:

1.Operation is extremely simple and convenient.

2.Hydraulic power unit with integral pump station, compact structure, reliable performance; hydraulic system set emergency drop function to preven.

3.Power outages and accidents, and emergency operation is simple.

4.Equipment control voltage is DC 24V, effectively ensure personal safety; equipment with leakage protection switch, emergency stop switch, limit electrical limit switch, button box are waterproof design.

1.The lifting height ranges from 4m to 18m and lifting capacity varies from 100 to 250kg.

2.The power sources could be 110,220V,380V or chargeable battery.

3.Aluminum-Alloy-Mast Lifts are made up of high grade aluminum profile.

Type

Model

Platform size

Lifting height

Load capacity

Motor power

Single guide rail

CWGJ 0.2-3

1000*1000mm

3m

0.2T

1.5Kw

CWGJ 0.5-5

1500*1500mm

5m

0.5T

2.2Kw

CWGJ 1.0-10

1500*1500mm

10m

1T

3Kw

CWGJ 2.0-4.5

3000*2000mm

4.5m

2T

4Kw

CWGJ 1.0-5

2000*1500mm

5m

1T

3Kw

CWGJ 2.0-5

2800*1600mm

5m

2T

4Kw

CWGJ 3.0-5

3000*2000mm

5m

3T

4Kw

Double guide rail

CWGJ 5.0-5

3000*5000mm

5m

5T

7.5Kw

CWGJ 2.0-8

2500*2000mm

8m

2T

4Kw

CWGJ 2.0-10

2000*1500mm

10m

2T

4Kw

CWGJ 3.0-12

2500*2000mm

12m

3T

5.5Kw

CWGJ 2.0-14

2000*1500mm

14m

2T

5.5Kw

CWGJ 2.0-16

2000*1600mm

16m

2T

5.5Kw

CWGJ 2.0-18

3000*2200mm

18m

2T

7.5Kw
