Fully Proportional Hydraulic Controls
Simple, reliable & easy to maintain
Bi-Energy Available
Optimizing utilization
Weight Saving Design
Easily towed & maneuvered on site
Telescopic Axles
Access through double doorway openings

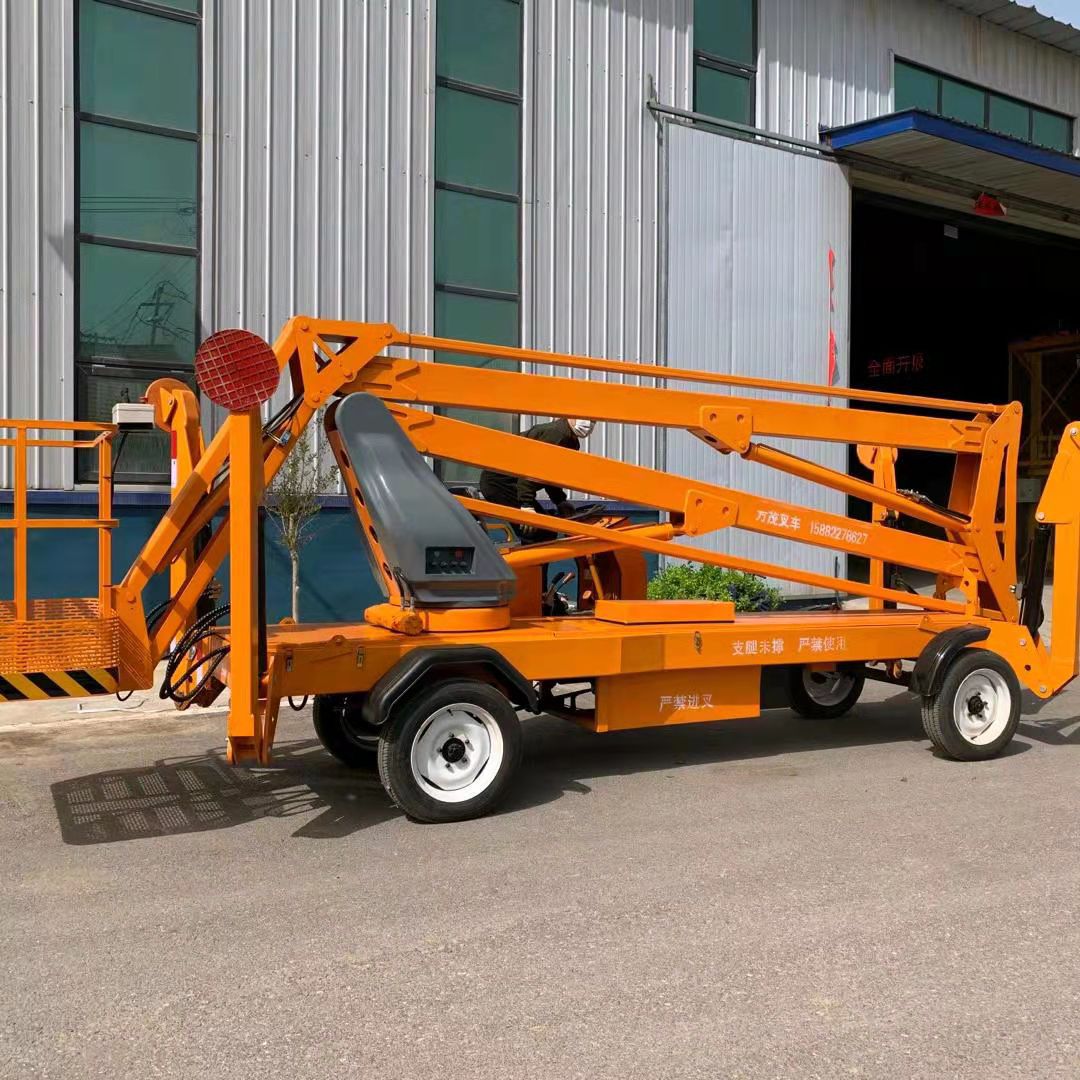

The crank arm aerial worl platform are used for lifting system with immoderate-altitude works. it could conquer the limits to do the aerial work, the platform can rotate 360 tiers, compact structure, bendy steerage, its chassis width can make certain the system into the narrow channel and crowded paintings location. standby power device can operate the work platform reset, with a handy delivery mode that may be drawn into any region. the manage panel is straightforward to select out, multiple securities, advanced incorporated hydraulic electric integration device.
Model | CWGJBZ-8 | CWGJBZ-10 | CWGJBZ-12 | CWGJBZ-14 |
Platform Height (m) | 8 | 10 | 12 | 14 |
Working Height (m) | 10 | 12 | 14 | 16 |
Load Capacity (kg) | 230 | 230 | 230 | 180 |
Rotation | 360° | 360° | 360° | 360° |
Operating Radius (m) | 3(6) | 3(6) | 3.5(8) | 4.3(10) |
Power (Kw) | 9 | 9 | 12 | 12 |
Walking Speed (km/h) | 15-30 | 15-30 | 15-30 | 15-30 |
Overall Size (mm) | 3800*1900*2600 | 3800*1900*2600 | 3800*1900*2900 | 5200*1900*2900 |
Weight (kg) | 1800 | 1800 | 1900 | 2000 |
