Fully Proportional Hydraulic Controls
Simple, reliable & easy to maintain
Bi-Energy Available
Optimizing utilization
Weight Saving Design
Easily towed & maneuvered on site
Telescopic Axles
Access through double doorway openings

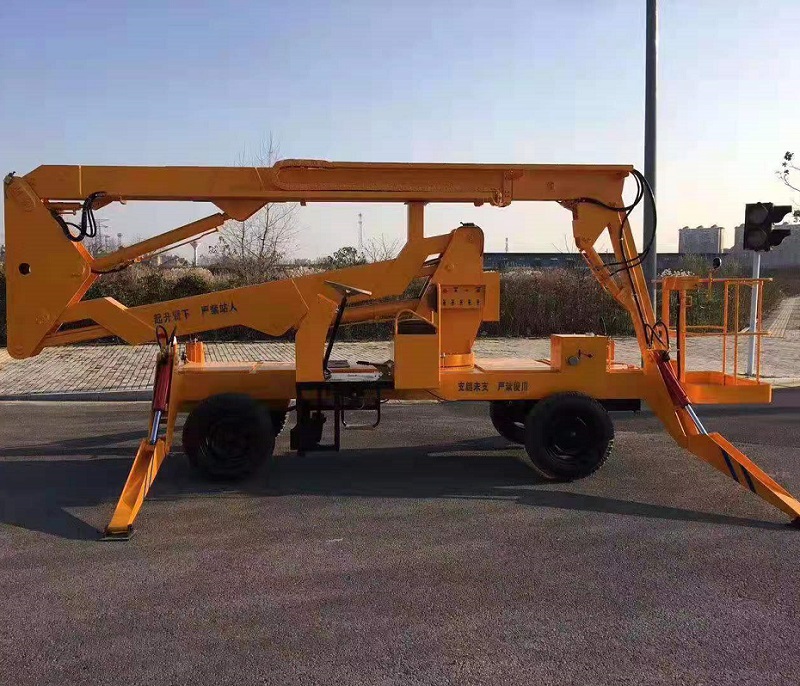

The crank arm aerial worl platform are used for lifting equipment with immoderate-altitude works. it may overcome the boundaries to do the aerial work, the platform can rotate 360 levels, compact structure, flexible steering, its chassis width can make sure the device into the slim channel and crowded work area. standby power system can function the paintings platform reset, with a available transport mode that can be drawn into any area. the manage panel is straightforward to choose out, a couple of securities, advanced incorporated hydraulic electrical integration machine.
Model | CWGJBZ-8 | CWGJBZ-10 | CWGJBZ-12 | CWGJBZ-14 |
Platform Height (m) | 8 | 10 | 12 | 14 |
Working Height (m) | 10 | 12 | 14 | 16 |
Load Capacity (kg) | 230 | 230 | 230 | 180 |
Rotation | 360° | 360° | 360° | 360° |
Operating Radius (m) | 3(6) | 3(6) | 3.5(8) | 4.3(10) |
Power (Kw) | 9 | 9 | 12 | 12 |
Walking Speed (km/h) | 15-30 | 15-30 | 15-30 | 15-30 |
Overall Size (mm) | 3800*1900*2600 | 3800*1900*2600 | 3800*1900*2900 | 5200*1900*2900 |
Weight (kg) | 1800 | 1800 | 1900 | 2000 |
