New Bi-Levelling Tracked Scissor Lift

Our tracked scissor lifts are production•orientated, and might growth operator productiveness on disturbing out of doors worksites, having benefits along with strong potential, handy operation, protection, reliability and accurate exceptional.This kind of scissor lift is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for wild jungle, prairie, field...

Contact Now

Product Details

Our electric powered powered scissor lifts are energy-saving and environmentally-friendly with much less noise and no emission. with the maximum operating height of 6m to 12m, it's far appropriate for tough terrain outdoor running environment. crawler self propelled scissor elevate can paintings with out being restrained by the street situations. this kind of scissor lift is flawlessly appropriate for terrible street conditions, consisting of muddy, snowy, sandy road. with strong and comfortable structure, it's far widely used for wild jungle, prairie, discipline...

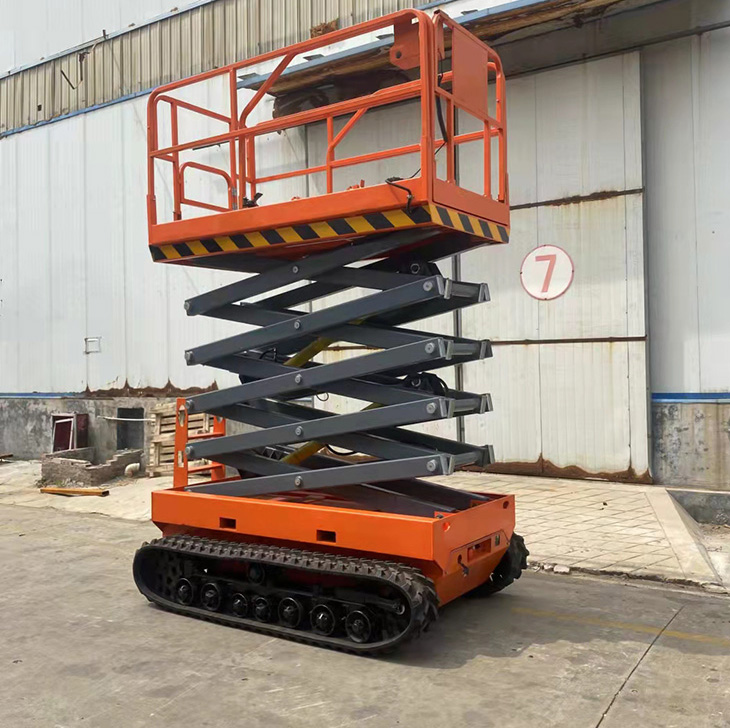

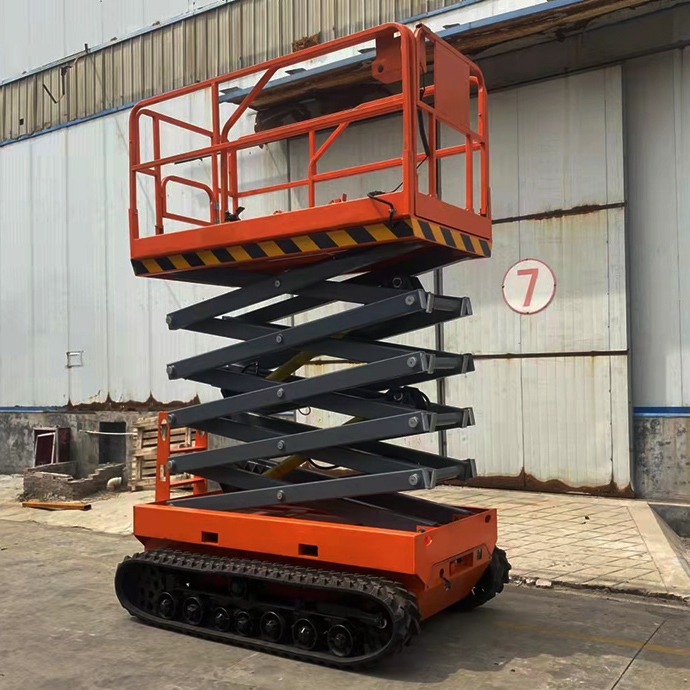

New Bi-Levelling Tracked Scissor Lift.jpg

Model	Platform Size（m）	Load(kg)	Working height(m)	Overall size(m)	Power(Kw)	Weight(Kg)
CWGJ0406LD	1.23*0.65	200	4.5m	1.270.792.05	1.5	780
CWGJ0608LD	2.27*1.12	450	6m	2.441.391.76	4	2420
CWGJ0810LD	2.27*1.12	450	8m	2.441.391.89	4	2610
CWGJ1012LD	2.27*1.12	320	10m	2.441.392.02	4	2890
CWGJ1214LD	2.27*1.12	320	11.75m	2.441.392.13	4	3080

1. Products advantages Self propelled Crawler Scissor Lifts, Moving forward,turning around and lifting up are easily operated. Short chargeable time and long dural time of the battery. Easily moved, spacious working platforms, smooth working condition and high working efficiency

2. Moving method The chargeable battery provides the power to move and steer around.

3. Lifting Power The chargeable battery provides the power to raise up the lift platforms. Working heights rangs from 4m,6m,8m,9m,10m,12m,14m.

4. Applications It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline.
