Truck Mounted Factory Scissor Lift

Truck mounted hydraulic lifting platform combines 4-wheel movable type and -wheel traction kind, adopts chassis of automobile, tricycle or battery vehicle as base body of the platform, engine of the car or direct current as strength, which can run in addition to drive the platform move up and down, widely used for subject work excessive above the floor most of the industries which include city creation, petroleum, visitors, municipal creation and factory.

Contact Now

Product Details

Business decoration, ceiling/fixture works, commercial facilities renovation, lamps and lanterns replacement in halls, protection of avenue lamp, aerial pictures and wall cleaning and many others.

Places can also in need of this kind of machine:

Workplace homes, purchasing facilities, theatres, hospitals, warehouses, factories, museums, auditoriums, lodges, gymnasium, commercial enterprise/convention middle, airports, auto stations and dual carriageway toll station and so forth.

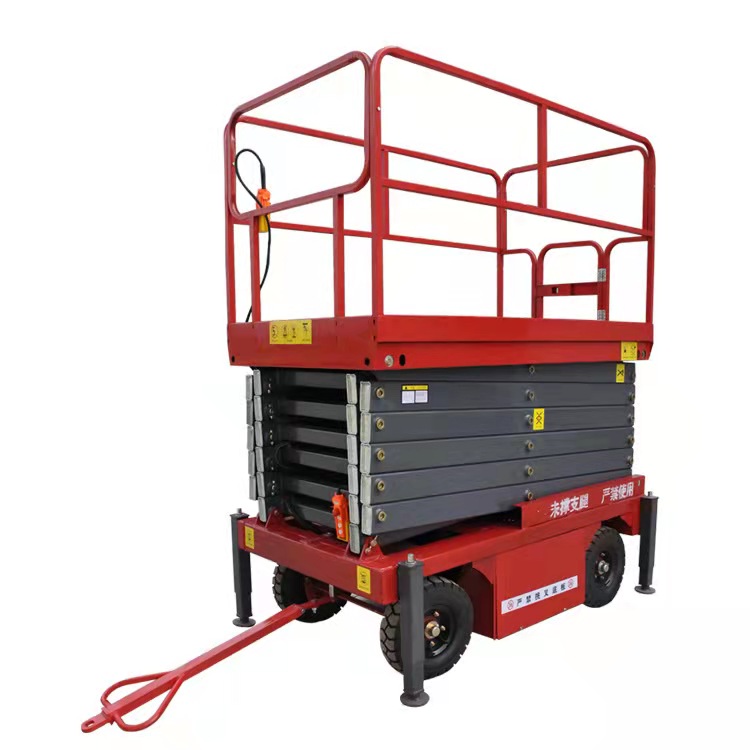

Truck Mounted Factory Scissor Lift.jpg

Specification for hydraulic scissor lift :

1.This hydraulic lift platform truck is the professional high-altitude operation equipment.

2.Its scissor mechanical structure makes the lifting platform lift more stably.Wide working platform and large loading capacity can make the work scope bigger. It's suitable for several people working together.

3.Lifting height: 4m, 6m, 8m, 10m, the max height of the scissor lift is 16m.

4.Loading capacity: 300kg,500kg,800kg,1000kg and so on.

5.Certifications: CE ISO/9001:2008 & UCS (QUALITY MANAGEMENT SYSTEM CERTIFICATE)

Model		CWGJ0.3-6C	CWGJ0.5-6C	CWGJ0.5-7.2C	CWGJ0.3-9C	CWGJ0.5-9C	CWGJ1-9C
Capacity	kg	300	500	500	300	500	1000
Max. height	mm	6000	6000	7200	9000	9000	9000
Min. height	mm	950	950	1350	1500	1600	1600
Platform size	mm	1780*840	1780*840	2000*1000	2000*1000	2000*1000	2100*1200
Overall size	kg	30001100 1100	30001100 1100	35001350 1550	35001350 1700	35001350 1850	35001350 1850
Lifting time	s	35	38	60	70	73	78
Voltage	V	24	24	40	40	40	40
Motor power	kw	1.5	1.5	1.5	1.5	1.5	3
Net weight	kg	1450	1450	2700	2800	2900	3100
